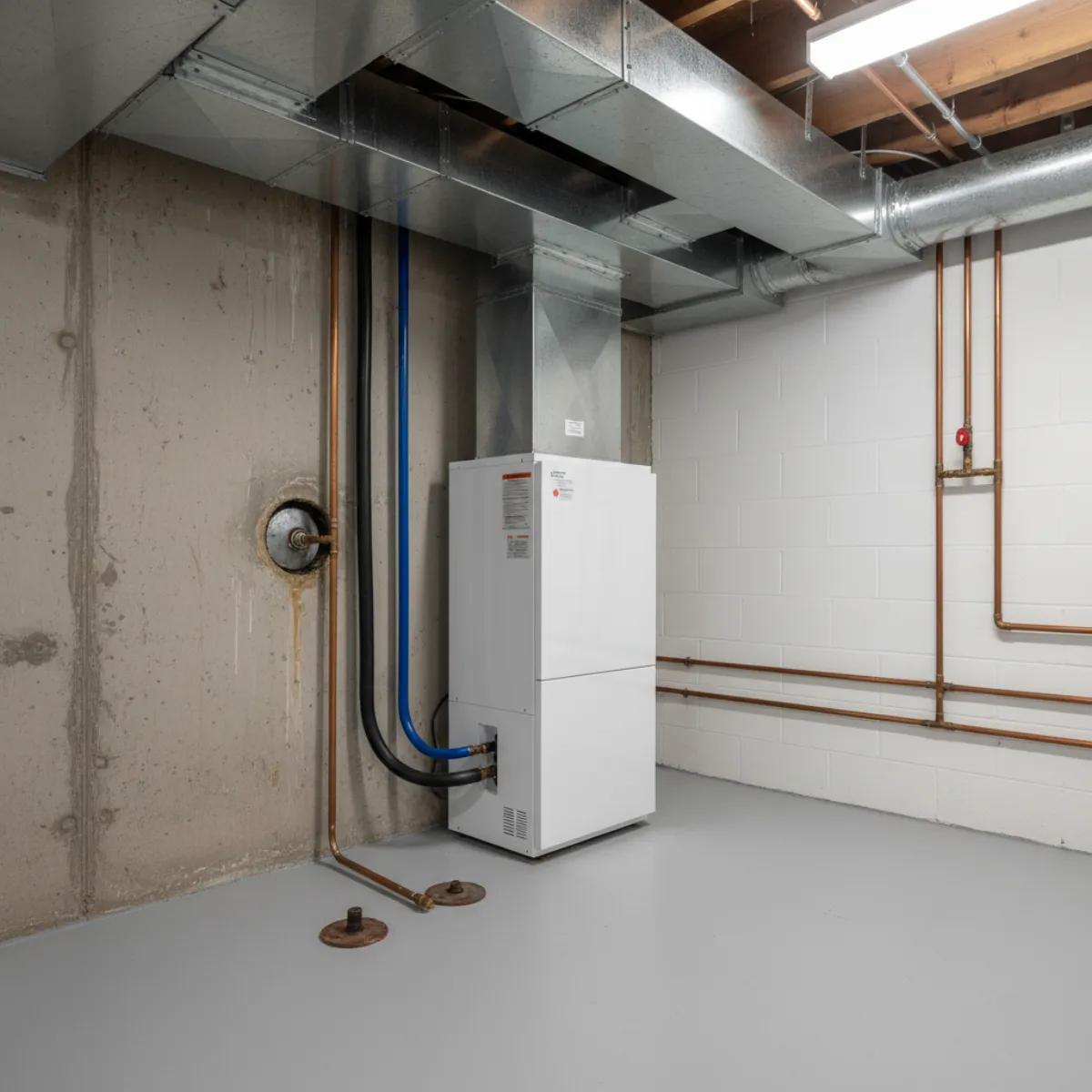

A Worcester ranch moved from oil baseboard heat toward a ducted cold-climate system. The project focused on duct design, low-temperature capacity, backup lockout, and winter commissioning for a colder Central Massachusetts design condition.
Yes, if the duct design and cold-weather capacity are engineered correctly. This Worcester case used a 3-ton Bosch IDS ducted heat pump, 2 comfort zones, backup heat lockout, and Mass Save whole-home rebate planning. Worcester design temperatures are colder than Boston, so sizing and commissioning are especially important.
| Category | Project Detail | Why It Matters |
|---|---|---|
| Home type | 1960s ranch, 1,850 sq ft | Sets the envelope, duct, and zoning constraints. |
| Previous heating | Oil boiler with baseboard distribution | Determines fuel-switching economics and backup strategy. |
| Equipment | Bosch IDS ducted cold-climate heat pump | Cold-climate equipment selection affects winter performance. |
| Capacity and zones | 3 tons, 2 zones | Shows whether the project is room-level or whole-home. |
| Rebate pathway | Whole-home heat pump pathway | Rebate rules vary by state, utility, equipment, and project scope. |
| Cost range | $24,000-$31,000 before rebates | Useful for comparing quote reasonableness. |
| Net cost range | $16,050-$23,050 after standard rebate target | Shows cost after standard rebate target, before final approval. |
| Estimated savings | $1,900-$2,600 | Modeled operating-cost impact, not a guarantee. |
Baseboard homes do not automatically have ducts, so distribution design had to be built around airflow, noise, and insulation.
Worcester winters are colder than coastal Massachusetts, making low-temperature output a primary design requirement.
Electric backup needed to be controlled carefully so it would not erase operating-cost savings.
The home needed better summer humidity control without oversizing the heat pump.
NuWatt used a ducted cold-climate system with two zones to balance bedrooms and common areas.
Duct runs were insulated and sealed to protect performance in unconditioned spaces.
Controls were configured to limit auxiliary heat use to emergency or extreme conditions.
Commissioning included airflow verification, static pressure review, thermostat setup, and homeowner education.
| Decision | Reason | Field Note |
|---|---|---|
| Use ducted comfort instead of wall heads | The ranch layout made duct routing feasible and the homeowner preferred central distribution. | Good installers choose ducted or ductless based on building geometry, not a default product preference. |
| Limit auxiliary heat | Electric resistance backup can raise bills quickly if controls are loose. | Aux heat settings are a commissioning item, not just a thermostat menu. |
| Design for Worcester, not Boston | Central MA design temperatures are lower, so coastal assumptions can underperform. | Local climate assumptions are core to reliable heat pump performance. |
Cold-climate ducted design for Central MA.
Bedroom and common-area scheduling.
3 tons x $2,650/ton, subject to approval.
Depends on backup settings and winter severity.
Modeled against oil heat.
Ductwork added project time.
Manual J calculation using Worcester-area design conditions.
Supply and return paths planned for airflow, sound, and service access.
Air handler, outdoor unit, ductwork, line set, electrical, and controls.
Static pressure, airflow, heat mode, defrost behavior, and aux heat lockout reviewed.
Final costs, rebates, and savings require a site-specific quote, utility confirmation, equipment selection, home energy assessment, and Mass Save approval.
It can be. Ranch homes with accessible attic or basement routing can work well with ducted heat pumps. Mini-splits may still be better when duct routing is difficult, rooms have very different loads, or the homeowner wants room-by-room control.
Yes, but they must be cold-climate systems sized for Worcester design temperatures. Controls, duct insulation, and backup heat settings all affect winter performance.
A standard whole-home 3-ton project can target up to $7,950 in 2026 before the $8,500 cap, subject to Mass Save approval and eligibility.
It can if it runs too often. Proper heat pump sizing and thermostat setup should keep auxiliary heat reserved for unusual or emergency conditions.
A ducted heat pump retrofit often takes 3-5 installation days depending on duct routing, electrical work, and access.
