A 4-in-1 microinverter that handles four panels per unit at $100-130 per panel. We break down the real-world performance, the 4-in-1 trade-offs, and how it stacks up against Enphase and SolarEdge in 2026.
2000W
Max Output
96.7%
Efficiency
$100-130
Per Panel
7.5 / 10
Rating
The Hoymiles HMS-2000-4T is the best-value microinverter in 2026. Its 4-in-1 design cuts inverter hardware cost by $1,100 compared to Enphase on a typical 20-panel system while still delivering independent per-panel optimization via 99.8% MPPT tracking. The trade-offs are real — a 12-year base warranty (vs Enphase 25-year), a less polished monitoring app, and no native battery integration. For budget-conscious homeowners who want microinverter benefits without microinverter prices, this is the unit to consider. Rating: 7.5/10.

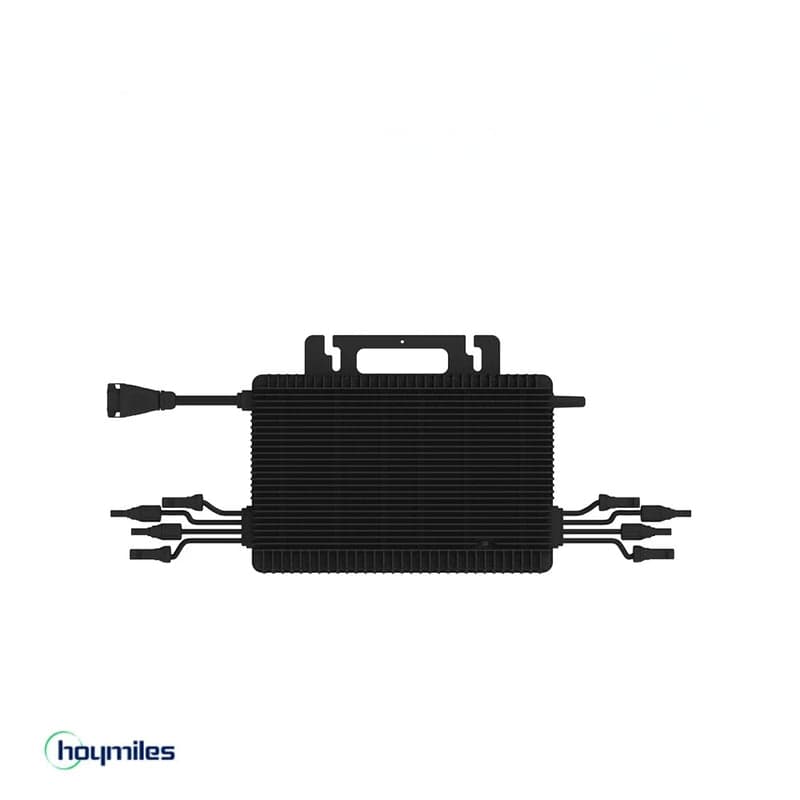

The HMS-2000-4T packs four independent MPPT channels into a single compact housing weighing just 5.7 lbs. Each channel handles up to 500W of AC output, giving you per-panel optimization without per-panel hardware costs.
| Specification | Value |
|---|---|
| Type | 4-in-1 Microinverter |
| Max AC Output | 2000W (500W × 4 channels) |
| Peak Efficiency | 96.7% |
| CEC Weighted Efficiency | 96.5% |
| MPPT Efficiency | 99.8% |
| MPPT Range | 16–60V DC per channel |
| Compatible Panel Range | 300–670W |
| Output Voltage | 240V AC, 60Hz |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Dimensions | 10.8 × 8.5 × 1.4 in |
| Weight | 5.7 lbs (2.6 kg) |
| Surge Protection | 6,000V built-in |
| Connectivity | Sub-1G wireless via DTU gateway |
| Warranty | 12 years (extendable to 25 years) |
The HMS-2000-4T communicates via Sub-1G wireless, not Wi-Fi. You need the Hoymiles DTU (Data Transfer Unit) gateway to connect the system to the internet for monitoring. The DTU-Pro or DTU-WLite costs $100-150 and connects up to 99 microinverters. One DTU covers your entire system — it is not per-unit.
The HMS-2000-4T is fundamentally different from both traditional single-channel microinverters and string inverters. Understanding the architecture helps you decide whether the trade-offs work for your roof.
Inside each HMS-2000-4T housing are four completely independent MPPT channels. Each channel has its own maximum power point tracker that optimizes the connected panel independently of the other three. This is electrically identical to having four separate microinverters — the panels do not share any power conversion circuitry.
The difference is physical, not electrical. Four MPPT circuits share one weatherproof enclosure, one set of output wiring, and one communication radio. This is what drives the cost savings — fewer housings, fewer connectors, fewer cable runs, and significantly less installation labor.
20-panel system with Enphase
20 separate microinverters
20 units × $185 = $3,700
20-panel system with Hoymiles
5 HMS-2000-4T units
5 units × $520 = $2,600
Components reduced
75% fewer devices
15 fewer electrical connections on your roof
Install time saved
2-3 hours less
Fewer mount points, fewer MC4 connections
The one real downside of 4-in-1 architecture: if the unit fails, four panels go offline instead of one. With Enphase, a single microinverter failure only affects one panel. That said, microinverter failure rates are extremely low (under 0.5% over 10 years), so the statistical probability of this impacting your production is small. The monitoring system flags any channel-level issue immediately, so a warranty replacement can be scheduled within days.
Inverter cost is a significant portion of a solar system. Here is what the three major inverter options cost for a typical 20-panel residential installation, looking only at the inverter/optimizer hardware.
| Inverter | Units Needed | Unit Cost | Total | Savings vs Enphase |
|---|---|---|---|---|
| Enphase IQ8HC | 20 units | 20 × $185 | $3,700 | — |
| SolarEdge Home Hub | 1 inverter + 20 opt. | $2,500 + 20 × $50 | $3,500 | $900 |
| Hoymiles HMS-2000-4TBEST VALUE | 5 units | 5 × $520 | $2,600 | $1,100 |
Prices reflect 2026 wholesale-to-installer cost including markup. Enphase and SolarEdge prices include all required hardware (gateway/hub). Hoymiles price includes DTU gateway ($100-150 for entire system, not per unit). Labor savings from fewer units are not included but typically add $200-400 in additional savings.
The $1,100 savings compared to Enphase is real money, but context matters. That $1,100 is roughly 5-7% of a typical 9 kW system cost. If the 25-year Enphase warranty, native battery support, or a more polished monitoring experience are worth $1,100 to you, Enphase is the right choice. If you want to minimize total system cost while still getting per-panel optimization, Hoymiles is the smarter pick.
One unit handles 4 panels — 75% fewer devices to install compared to single-channel microinverters
99.8% MPPT tracking efficiency ensures maximum energy harvest from every panel, even in partial shade
Lowest cost per panel of any microinverter at $100-130, compared to $170-200 for Enphase IQ8HC
Independent MPPT per channel means each panel is individually optimized, just like separate microinverters
6,000V surge protection built into each unit — no external surge protector needed
Widest panel compatibility range (300-670W) handles any current or future panel upgrade
Dramatically cuts install time — a 20-panel system needs only 5 units instead of 20
Lightweight at 5.7 lbs and compact profile (1.4 in thick) mounts flush on any racking rail
12-year base warranty is shorter than Enphase 25-year standard — the 25-year extension costs extra
Smaller brand presence in North America means fewer installers are familiar with the product
If one unit fails, 4 panels go offline simultaneously (vs only 1 panel with single-channel micros)
Monitoring app (S-Miles Cloud) is functional but less polished than Enphase Enlighten
No native battery backup integration — requires a separate AC-coupled battery system
DTU gateway required for monitoring has limited connectivity (no direct Wi-Fi on inverter)
Hoymiles offers a 12-year standard warranty with an optional extension to 25 years. This is the weakest point of the product compared to Enphase, which includes 25 years standard. Here is what is covered.
At $30-50 per unit ($150-250 for a 20-panel system), the 25-year warranty extension is one of the best values in solar. It brings the Hoymiles warranty in line with Enphase for a fraction of the cost difference. Solar panels are warrantied for 25 years, and your inverter should be too. Ask your installer to include the extended warranty in the system price.
The HMS-2000-4T installs differently from single-channel microinverters. Here is what your installer needs to know and what you should expect on install day.
Mounts directly to the racking rail between panels using standard hardware. At 5.7 lbs and 1.4 inches thick, it sits flush under the panel array. One unit connects to 4 adjacent panels via standard MC4 connectors.
Each of the 4 DC inputs connects to a separate panel. The single AC output trunk cable runs to the next unit or home run. This means 75% fewer AC trunk cable connections compared to single microinverters.
The DTU gateway installs indoors near your router or electrical panel. It communicates with all HMS units via Sub-1G wireless (similar to Z-Wave range). One DTU covers up to 99 microinverters — most residential systems need only one.
A 20-panel system with Hoymiles takes roughly 4-5 hours for the electrical work, compared to 6-7 hours with 20 separate Enphase units. Fewer mount points, fewer connectors, and fewer potential failure points on the roof.
The 4-in-1 design works best when panels are grouped in fours on the same roof face. Complex roofs with panels split across 3-4 different orientations may end up with unused channels on some units, reducing the cost advantage. For simple to moderate roof layouts, the HMS-2000-4T shines. For highly complex roofs with many small facets, single-channel microinverters offer more flexible placement.
The HMS-2000-4T competes against Enphase IQ8HC (the single-channel microinverter king) and SolarEdge Home Hub (the leading string inverter + optimizer system). Here is a head-to-head breakdown.
| Spec | Hoymiles HMS-2000-4TBest Value | Enphase IQ8HC | SolarEdge Home Hub |
|---|---|---|---|
| Type | 4-in-1 Micro | Single Micro | String + Optimizers |
| Max Output | 2000W (4×500W) | 384W per unit | 10,000W (central) |
| Peak Efficiency | 96.7% | 97.5% | 99.2% (inverter) |
| MPPT Efficiency | 99.8% | 99.0% | 99.5% |
| Warranty | 12 yr (25 ext) | 25 years | 12 yr (25 ext) |
| Price (20 panels) | ~$2,600 | ~$3,700 | ~$3,500 |
| Panels Per Unit | 4 | 1 | 1 optimizer + 1 inverter |
| Panel-Level MPPT | Yes | Yes | Yes |
| Battery Support | No (AC couple) | Yes (IQ Battery) | Yes (native) |
| Monitoring | S-Miles Cloud | Enlighten | mySolarEdge |
The Hoymiles HMS-2000-4T is an excellent fit for specific situations but not for everyone. Here is our honest recommendation based on installing both Hoymiles and Enphase systems.
NuWatt installs Hoymiles HMS-2000-4T systems for homeowners who want per-panel optimization at a lower cost. We provide transparent pricing, handle all permits, and let you compare Hoymiles vs Enphase options side by side. Serving MA, CT, RI, NH, ME, NJ, PA, and TX.
