NuWatt designs, installs, and manages solar, battery, heat pump, and EV charger systems across 9 states. One company, one warranty, one point of contact.
Get a Free Quote
Product image: United Chargers. Used for identification only.

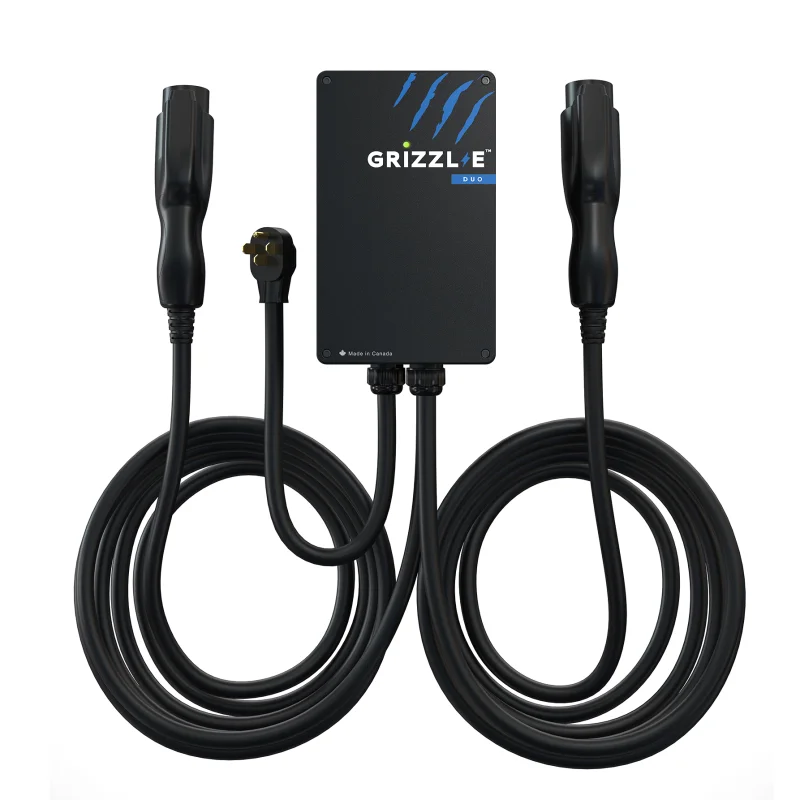

Dual-port 48A L2 on one feeder with dynamic load sharing. The most cost-efficient way to add two workplace stalls to an existing panel.
| Charger type | Level 2 (AC) dual-port |
| Max amperage | 48 A shared / 40 A per port |
| Max power output | 11.5 kW combined (5.8 kW/port shared) |
| Range per hour | ~18 miles/hour simultaneous (both plugged in) |
| Connector | SAE J1772 × 2 |
| Networked | Smart variant available with OCPP 1.6 |
| OCPP version | N/A (Classic Duo) / OCPP 1.6 (Smart Duo) |
| Wi-Fi / cellular | Wi-Fi on Smart variant only |
| NEMA rating | NEMA 4 industrial-grade metal |
| Cable length | 24 feet × 2 cables |
| Warranty | 3 years |
| Made in | Canada |
Adds two ports to one existing 60 A feeder. Cuts panel-board space consumption by half compared to two single-port units.
Duplex, triplex, and small multifamily where two households share one feeder. Dynamic 48 A split balances simultaneous sessions.
Plumbers, HVAC techs, and landscape fleets with 2 vans returning to base overnight. Simultaneous slow charge is the efficient profile.
| Line item | Typical range |
|---|---|
| Hardware (MSRP) | $899 – $1,099 |
| Permits & inspection | $150 – $400 |
| Labor (licensed electrician) | $900 – $1,600 |
| Make-ready (60A feeder, conduit, pedestal) | $500 – $1,100 |
| Smart variant upgrade | +$150 – $250 |
| All-in dual-port install | $2,400 – $3,800 |
Two single-port units on separate feeders typically run $3,500–$5,200 for the same 2-stall result. The Duo's economics come from the shared infrastructure, not the hardware itself.
Section 30C treats each port as a separate "item" with a $100,000 cap on the commercial credit, so a dual-port Duo doubles your cap exposure. Residential installs in eligible census tracts get up to 30% / $1,000 per household.
Full Section 30C commercial guide

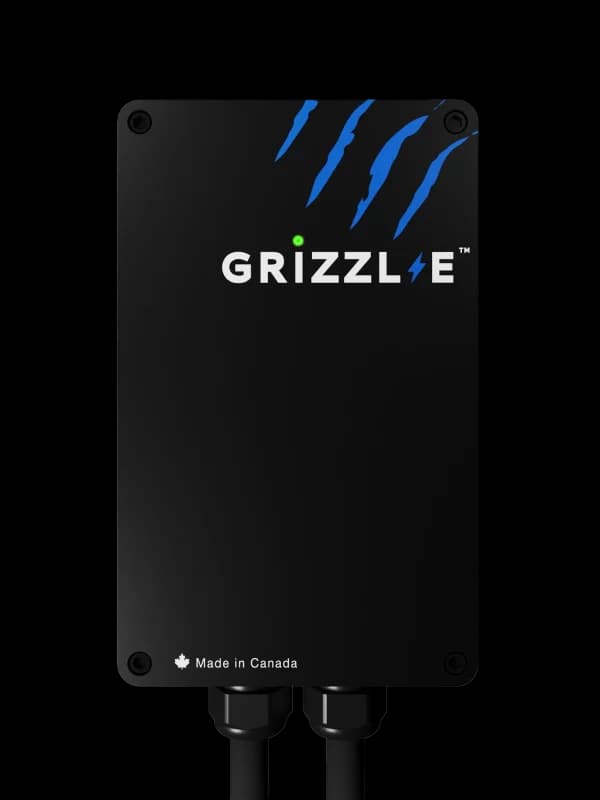

Single-port sibling, $399. Pair two Classics on separate feeders if each port needs full 40A independent power.
View spec
Single-port networked alternative. Deploy two Pulsar Plus with Power Boost on one feeder for a networked dual-stall.
View spec
Single-port networked with touchscreen. Pair two for a full-featured dual-stall with driver UX.
View specNuWatt handles load calc, permit, and the single-feeder trench — typical 2-stall workplace retrofit lands in 3–5 weeks.
Last verified by NuWatt Engineering Team on 2026-04-14. Specs reflect the 2026 United Chargers datasheet. Installed cost ranges reflect NuWatt project data.
